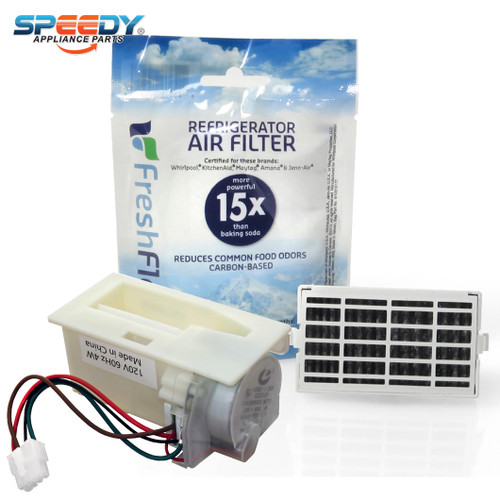

Replacement air damper and motor control used for some Kenmore, KitchenAid, Maytag, and Whirlpool refrigerator models.
Directly Replaces: WPW10257451, W10257451, 2117062, AP5324818, EAP3502932, PD00008554, PS3502932, PS11751310.
Features:
- Controls a small door that opens/closes to allow cold air to flow from the freezer to the refrigerator section.
- Commonly used on some french door refrigerators.
- Includes (1) Damper and Synchronous Motor Assembly with 4-Wire Harness.
Specifications:
- Color: Off-White / Gray / Multi Colored Harness.
- Material: Plastic / Metal.
- Electronic Specs: 120V, 60Hz, 4W.
- Dimensions: 4-3/4"L x 2-7/8"W x 2"H. 5 Rotations/Minute.
- Additional Dimensions: Harness & plug measure 5-1/2"L.
