8544771 279973 8557403 Dryer Element & Sensors Kit Replacement for Whirlpool / Maytag

(No reviews yet) Write a Review
SKU: APN8544771-9973-7403_KIT
CONDITION: New
$91.23
$46.25
(You save $44.98 )
Compatible Brands:
Amana
Compatible Brands:
Inglis
Compatible Brands:
Kenmore
Compatible Brands:
Maytag
Compatible Brands:
Whirlpool
8544771 279973 8557403 Dryer Element & Sensors Kit Replacement for Whirlpool / Maytag

Replacement heating element with thermostats and fuse used for some Amana, Inglis, Kenmore, Maytag, and Whirlpool dryer models.

Directly Replaces: WP8544771, 8544771, W10836011, WP8544771VP,DE771, PAT#7154072, 1180054, AH990361, AP3866035, AP6013115, EA990361, EAP11746337, PD00002399, PS990361, PS11746337, 279973, 279973VP, 3391913, 3404151, 3404152, 3977395, 8318314, 897710, AH334387, AP3094323, EA334387, EAP334387, PD00002626, PS334387, WP8557403, 8557403, 1180102, AP6013164, EAP11746386, PD00003588, PS11746386.

Features:

  • Heat and monitor the temperature to prevent the dryer from overheating.
  • Heating element requires re-using the housing from the original element.

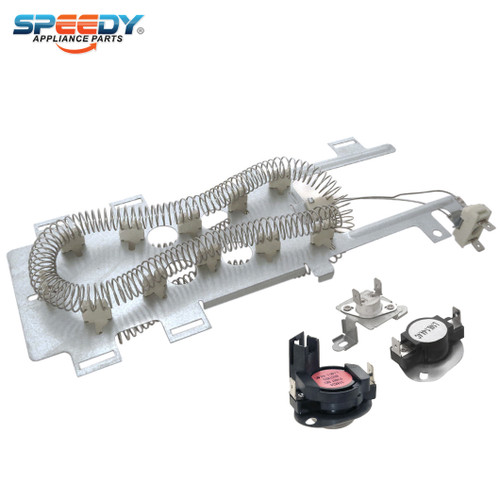

  • Includes (1) APN8544771 Heater Coil with (2) 5/16" Male Terminals, (1) APN279973 Thermostat & Thermal Cutoff Set, (1) APN8557403 High Limit Thermostat with Thermistor Sensor.

APN8544771 Element Specifications:

  • Material: Metal / Ceramic.
  • Electrical Specs: 240V, 5400W.
  • Overall Dimensions: 13-7/8"L x 6-1/2"W x 2-1/2"H.

APN8557403 Thermostat with Thermistor Sensor Specifications:

  • Color: Black / Gray.
  • Material: Plastic / Metal.
  • Electrical Specs: L146-44C, 295-111F with 50 Ohm thermistor.
  • Dimensions: 1-5/8"L x 1-1/2"W x 2"H.
  • Additional Dimensions: Approx. 1-5/8" between mounting holes.

APN279973 Thermostat & Fuse Set Specifications:

  • 3391914 High Limit Thermostat Replacement

    • Color: Black / Gray.
    • Material: Plastic / Metal.
    • Electrical Specs: L295-80F; 295°F open, 80°F differential, 215°F close.
    • Dimensions: 1-1/2"L x 1-1/8"W x 2"H; 1-5/8" between mounting holes (center to center).

  • 8318314 Thermal Cutoff Fuse Replacement

    • Color: White / Gray.
    • Material: Metal / Ceramic.
    • Electrical Specs: 352°F, One-Time Fuse (must be replaced once blown).
    • Dimensions: 1-1/4"L x 1-1/4"W x 2-3/16"H; 1-5/8" between mounting holes (center to center).
