4317943 4318047 Refrigerator Ice Maker & Water Valve Replacement for Whirlpool / Maytag

(No reviews yet) Write a Review
SKU: APN4317943-8047_KIT
CONDITION: New
$168.23
$79.25
(You save $88.98 )
Compatible Brands:
Amana
Compatible Brands:
Crosley
Compatible Brands:
Estate
Compatible Brands:
Ikea
Compatible Brands:
Inglis
Compatible Brands:
Jenn-Air
Compatible Brands:
Kenmore
Compatible Brands:
KitchenAid
Compatible Brands:
Maytag
Compatible Brands:
Roper
Compatible Brands:
Thermador
Compatible Brands:
Whirlpool
4317943 4318047 Refrigerator Ice Maker & Water Valve Replacement for Whirlpool / Maytag

Replacement ice maker and water inlet valve kit used for some Amana, Crosley, Jenn-Air, Kenmore, KitchenAid, Maytag, Roper, and Whirlpool refrigerator models.

Directly Replaces: 4317943, 4317943R, 4317943VP, 4210317, 4211173, 480616, 480617, 482014, 482015, 482016, 482017, 482018, 482019, 482020, 482394, 482433, 482990, 625601, 625603, 625610, 625611, 625622, 625625, 625653, 625656, 625660, 626002, 626201, 626237, 626366, 626461, 626489, 626608, 626636, 626640, 626609, 626626, 626670, 626687, 627572, 68972-4, 797991, 8114, 833701, 978552, 978553, 978556, 99989730, 46000978556, 46004211173, ER4317943, J21791, J22241, M626687, RIM500, RIM943, TJ90RIM943, W10632400, W10122496, W10190952, W10281545, B008DJX79Q, B008DJWLFC, B008DJZ0MI, B008DJW0CQ, B00DM8JA80, B008DJKF9Q, B008DJWKYE, B008DJXCB4, B008DK3ULA, B008DK78PO, B008DJXFWK, B008DJWJN6, B008DJVOSW, B008DJWI7I, B008DJZATG, B008DJWLQG, B008DJWHT2, B008DJVP8Q, B008DJWLAM, B018A35XMS, B008DJVXGA, B008DJWIZU, B00NMNLHQ8, B0085SV2E2, B008DK2LE2, B00DUIJ4R4, B00HJXYSYA, B008DJYYC0, B005HFB75K, B00M63GZXK, B008DK7976, B008DJWK1M, B008DJXGLK, B008DK4IYS, B008DJVPVI, B008DJX5J8, B008DJVEBY, B008DJXAA2, B008DJXLBU, B008DJXEI0, B008DJIZOS, B008DJVESW, B008DJI7NC, B008DJWJBS, B008DJVPHW, B008DJWZOO, B008DJVO1E, B008DJXHFA, B008DJX7R8, B008DJXOMQ, B008DK5838, B008DJVODC, B008DK78VS, 1857, AH358591, AP2984633, EA358591, EAP358591, PD00002471, PS358591, 4318047, 12001415, 1-16305, 1014, 116305, 3456, 289, 4318047VP, 46000482531, 46000627558, 46004210524, 047195-08, 4210524, 4339671, 4339713, 401, 482531, 0054542, 544047, 544617, 544620, 55996-3, 564352, 564640, 53753-1, 55996-1, 55996-5, 6-25765, 6-25793, 6-27143, 6-27453, 6-27461, 60184-3, 60184-1, 60184-4, 625734, 625765, 625793, 625796, 625926, 625985, 626083, 627007, 627074, 627133, 627143, 627173, 627194, 627217, 627223, 627233, 627263, 627281, 627339, 627341, 627342, 627349, 627362, 627450, 627452, 627453, 627456, 627459, 627460, 627461, 627462, 627495, 627497, 627543, 627550, 627558, 627595, 627624, 627661, 627701, 627713, 627752, 627767, 627820, 627821, 627908, 627910, 627929, 627932, 627935, 627975, 627976, 627978, 61001019, 625717, 626084, 627117, 627382, 627383, 627384, 675733, 69347681, 69362583, 69364-3, 716328, 790297, 8214, 819495, 819497, 819498, 831429, 876033, 978439, 99989712, A3034201, B11-218, C8923201, D3961503, D3966906, D3983903, D7022103, D7036803, D70368-3, D7121403, D7261703, D7712601, D7712602, D7712603, GVI-1001, GVI-1003, GVI-430, GVI-441, GVI1001, GVI1003, GVI441, IMV425, IMV433, IMV441, IH2003, IMV460, K-51705, K51705, PS358631, R0175012, R1750-12, R1750-8, R0175008, R0175015, VI2301, VI2306, Y0054542, Y04719508, Y625765, Y625793, Y627143, Y627453, Y627461, WV8047, 3456, AH358631, AP3103467, EAP358631, PD00002587, PS358631.

Features:

  • Water valve controls the flow of water to the ice maker which creates ice cubes to be stored in the ice bin.
  • Ice makre kit replaces most ice makers made by Whirlpool, Kitchen Aid, Kenmore for models starting with 106. However, it does not fit models that have the ice container in the door and electronic ice level sensor.
  • Ice maker kit INCLUDES bail arm.
  • Some models may require re-using the original ice maker wire harness for proper installation.
  • Water valve kit replaces various single coil inlet valves.
  • Water valve uses 1/4" male compression inlet; 1/4" male compression outlet.

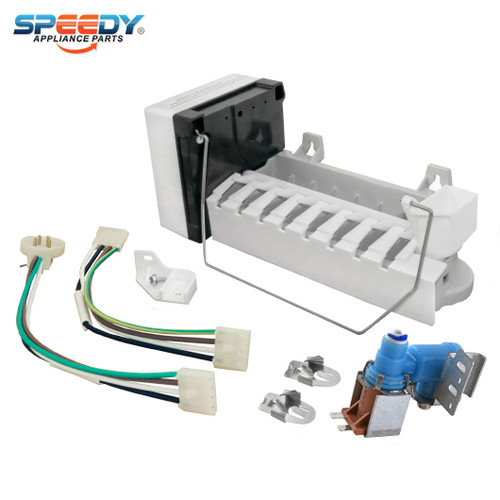

  • Includes (1) 8-Cube Ice Maker Assembly with Bail Arm, (1) Round Style Plug Wire Harness, (1) Linear Style Plug Wire Harness, Installation Hardware, Instructions,  (1) Water Valve & Bracket, (1) Water Tube,  (1) Additional Bracket, Water Line Connectors, and Installation Hardware.

APN4317943 Ice Maker Specifications:

  • Color: White / Black / Gray.
  • Material: Plastic / Metal.
  • Finish: Glossy.
  • Electrical Specs: 115V, 60Hz, 1.6W.
  • Dimensions: 11-1/4"L x 4-5/8"W x 4-3/4"H.
  • Additional Dimensions: Wire harness with round style plug measures 12"L. Wire harness with linear plug measures 10 7/8"L.
  • View Instructions.

APN4318047 Water Inlet Valve Specifications:

  • Color: Blue / Brown / Gray.
  • Material: Plastic / Metal.
  • Electrical Specs: 120V, 50/60Hz, 35W.
  • Dimensions: 3-1/2"L x 2-1/2"W x 3-1/8"H.
  • Additional Dimensions: Water line measures 1/4"W x 12-3/8"L;1/4" x 1/4" plastic compression union; 1/4" plastic compression nut; 1/4" brass compression sleeve.
