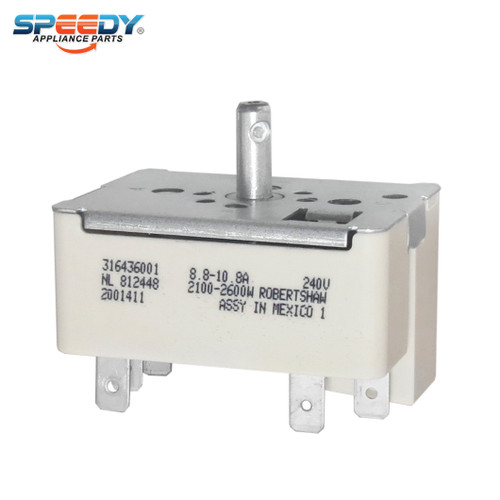

Replacement infinite switch used for some Admiral, Crosley, Electrolux, Frigidaire, Gibson, Kelvinator, Kenmore, Tappan, and White-Westinghouse range models.
Directly Replaces: 316436001, 316021501, 5304506425, QE214312, ES6001, 1155395, AH1145040, AP3885460, EA1145040, EAP1145040, PD00000167, PS1145040.
Features:
- Regulates the heat level of the burner element.
- Used with some 8" elements.
- Has five .25" male spade terminals, labeled L1, L2, H2, H1, and P.
- Includes (1) 5-Terminal Infinite Switch.
Specifications:
- Color: Gray / Almond.
- Material: Plastic / Metal.
- Electrical Specs: 240V, 2100-2600W, 8.8-10.8A.
- Dimensions: 2-1/8"L x 1-3/4"W x 2-5/16"H.
