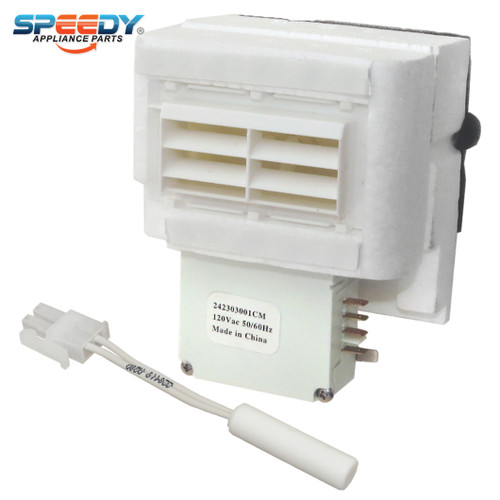

Replacement air damper control and thermistor sensor used for some Crosley, Frigidaire, and White-Westinghouse refrigerator models.
Directly Replaces: 242303001, 242283901, NTBE001ZA1, 3016452, AP5788340, EAP8746718, PD00029645, PS8746718, 240597203, 240597201, 240597202, 7240597203, 1258948, AH1765215, AP4032998, EA1765215, EAP1765215, PD00000590, PS1765215.
Features:
-
Controls a small door that opens/closes to allow cold air to flow from the freezer to the refrigerator section.
- Commonly used on side by side refrigerators.
- Includes (1) Damper and Motor Control Assembly.
APN242303001 Damper Control Specifications:
- Color: Black / White / Beige / Gray
- Material: Styrofoam / Plastic / Metal / Foam.
- Electrical Specs: 120Vac, 1.5/2W, 50/60Hz.
- Dimensions: 5-1/8"L x 3-1/8"W x 4"H.
APN240597203 Thermistor Sensor Specifications:
- Color: White.
- Material: Plastic / Metal.
- Finish: Glossy.
- Electrical Specs: 10K Ohm, NTC.
- Overall Dimensions: 3-5/8"L x 5/8"W x 5/16"H.
- Additional Dimensions: Sensor measures approx. 1-3/16"L x 5/16" Diameter.
